In-Depth Applications and Technical Analysis of Diatomite Filter Aids in the Water Treatment Industry

I. Overview of Diatomite Filter Aids and Their Core Value in Water Treatment

Diatomite filter aids, as an efficient and cost-effective filtration medium, play a pivotal role in modern water treatment engineering. This naturally porous material, formed from ancient diatom fossil deposits, possesses unique microporous structures and physicochemical properties, making it indispensable in various water purification processes. The water treatment industry imposes stringent requirements on filtration media, and diatomite filter aids excel with their superior filtration precision, chemical stability, and economic viability. They effectively remove suspended solids, colloids, microorganisms, and even some dissolved organic compounds, meeting diverse water purification standards.

In water treatment processes, diatomite filter aids are primarily applied in drinking water purification, industrial circulating water treatment, advanced wastewater treatment, and specialized effluent treatment. Compared to traditional materials like quartz sand and activated carbon, diatomite filter aids offer more uniform pore structures (0.1–50 μm pore size distribution), larger specific surface areas (1.5–5 m²/g), and enhanced adsorption capabilities. Water treatment-grade diatomite typically undergoes high-temperature calcination (800–1200°C) or chemical treatment to improve mechanical strength, stabilize filtration performance, and reduce soluble impurities.

II. Key Applications in Drinking Water Treatment

In municipal drinking water systems, diatomite filter aids serve a critical function. With the full implementation of GB5749-2022 "Standards for Drinking Water Quality", stricter requirements for turbidity and microbial control have rendered conventional treatment methods insufficient. Diatomite filter aids enable stable turbidity control below 0.1 NTU and achieve >99% removal efficiency for pathogens such as Cryptosporidium and Giardia, significantly enhancing drinking water biosafety.

Two primary application methods exist:

Precoat Filtration – A 1–3 mm diatomite layer is pre-deposited on filter elements (e.g., cloth or mesh), with a typical flow rate of 5–15 m³/m²·h.

Body Feed Filtration – Diatomite is continuously dosed into raw water (0.1–1.0 g/L), forming a dynamic filter cake.

Comparative studies show that diatomite systems outperform conventional sand filters by:
✔ 50% higher filtration precision
✔ 60–70% less backwash water consumption
✔ 2/3 reduction in footprint
✔ Better adaptability to fluctuating raw water quality

Notably, diatomite excels in emergency water pollution incidents (e.g., algal blooms, chemical spills). Beyond mechanical particle retention, its surface silanol groups adsorb heavy metals (e.g., Pb²⁺, Cd²⁺) and organic pollutants. Acid-activated diatomite exhibits a lead adsorption capacity of 8–15 mg/g, proving vital for emergency water supply.

III. Purification in Industrial Circulating Water Systems

Industrial cooling water systems face scaling, corrosion, and microbial growth. Diatomite filter aids effectively remove suspended solids (<5 mg/L), rust, and biofilms, prolonging equipment lifespan. Compared to side-stream filtration, diatomite systems offer:
✔ Compact design
✔ Higher automation
✔ Lower operational costs

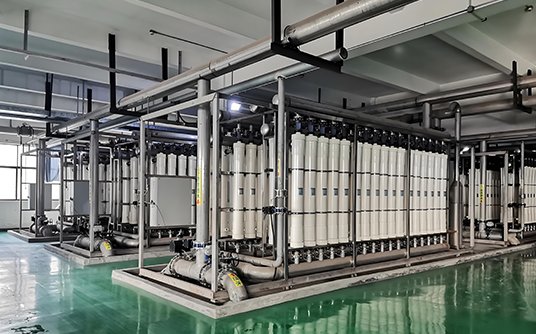

In ultrapure water (UPW) production for electronics, diatomite pretreatment protects downstream RO membranes and ion-exchange resins. Semiconductor-grade UPW demands <1 particle/mL (≥0.1 μm); diatomite’s graded filtration (coarse to fine) reduces turbidity from 10 NTU to <0.05 NTU, extending RO membrane cleaning cycles by 2–3× and improving product water stability by 30%.

For food & beverage applications (e.g., brewing), food-grade diatomite removes turbidity-causing colloids and metallic ions (Fe, Mn) that impair flavor. A major brewery reported:
✔ Bottle wash water turbidity dropped from 3.0 NTU to <0.3 NTU
✔ 40% reduction in bottle breakage
✔ Annual savings >$1 million

IV. Innovative Applications in Wastewater Advanced Treatment & Reuse

Amid water scarcity, wastewater reuse is imperative. Diatomite aids in:

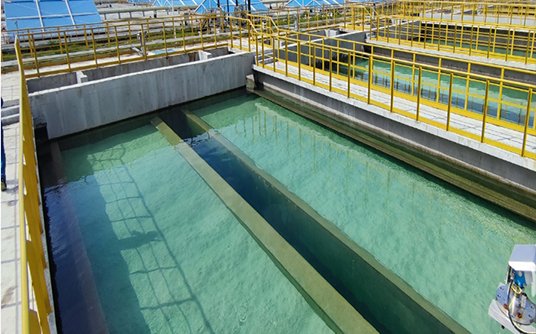

Municipal WWTP Upgrades – Replacing sand filters, it reduces:

SS from 20 mg/L to <5 mg/L

TP from 1 mg/L to <0.3 mg/L
Meeting China’s Grade 1A standards (GB18918-2002) with 1/4–1/3 the footprint.

Industrial Wastewater – Combined with coagulants (e.g., PAC at 1:0.2–1:0.5 ratios), it treats dyeing wastewater:

Color reduction from 100× to <10×

COD from 80 mg/L to <30 mg/L
Its porous structure enhances floc capture and organic degradation.

MBR Systems – Dosing 0.5–2.0 g/L diatomite forms a protective dynamic layer on membranes, mitigating fouling by:

Uniformizing sludge particle size

Reducing fine-particle clogging
Resulting in:
✔ 50–100% longer cleaning cycles
✔ 15–20% lower energy use

V. Technological Innovations & Future Trends

Modern diatomite filter aids are categorized by:

Processing: Natural, calcined, flux-calcined

Filtration grade: Coarse (10–30 μm), standard (3–10 μm), fine (1–3 μm)

Emerging modifications (e.g., nano-TiO₂/Fe₂O₃ coating, organic functionalization) enhance selective adsorption.

Future directions:

Multifunctional composites (filtration + adsorption + catalysis)

Smart systems (real-time monitoring, automated dosing)

Sustainability (low-energy production, spent diatomite recycling)

Diversified uses (seawater pretreatment, rainwater harvesting, aquaculture)

Nanotechnology integration boosts specific surface area (3–5×) and micropollutant removal. Photocatalytic diatomite (e.g., solar-driven TiO₂) enables "filtration + advanced oxidation" for refractory organics.

VI. Conclusion

Diatomite filter aids are irreplaceable in ensuring water safety, process efficiency, and cost-effectiveness across:
✔ Drinking water (>99% pathogen removal)
✔ Industrial water (RO protection, corrosion control)
✔ Wastewater reuse (compact, high-performance polishing)

With tightening environmental regulations and growing water reuse demands, diatomite technology will continue evolving. Water treatment operators should:

Select grades based on raw water quality (e.g., fine for UPW, coarse for industrial)

Optimize synergies with other treatment units

Implement strict QC protocols (heavy metals, microbial limits)

By leveraging diatomite’s structural uniqueness, chemical inertness, and scalability, the industry can build smarter, greener, and more economical water solutions—securing our most vital resource for future generations.
