The multi-field applications and technical characteristics analysis of coarse silica soil particles

1. Basic material properties

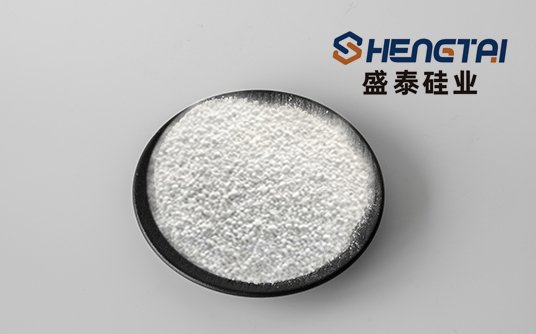

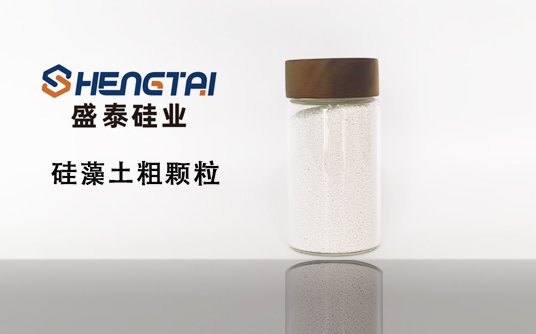

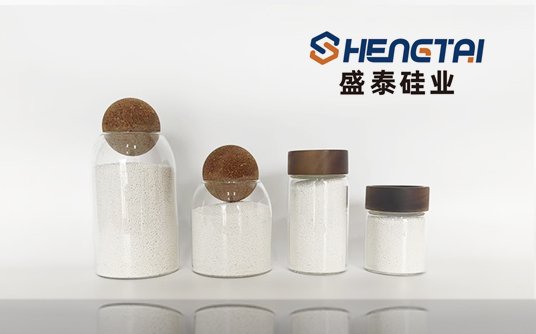

Coarse silica soil particles (with a particle size range of 100-1000 μm) are functional materials obtained by crushing and grading natural diatomite. They have the following typical characteristics:

- Retain the original diatom skeleton structure

- Bulk density 0.4-0.6 g/cm³

- Porosity 60-80%

- Specific surface area 5-20 m²/g

- Mohs hardness 4.5-5.5

This special structure enables coarse silica soil particles to have good fluid permeability and mechanical strength. SEM analysis shows that there are a large number of 1-10 μm through channels on their surface.

2. Main application areas

2.1 Industrial filtration field

Coarse silica soil particles are indispensable in large-scale industrial filtration systems:

- As a pre-coating material, they can form a high-permeability filtration layer

- Used for the coarse filtration of viscous liquids such as syrup and oil

- As a deep filtration medium in wastewater treatment

2.2 Building materials field

Applications in lightweight building materials include:

- Insulation mortar aggregate (addition rate 20-30%)

- Sound-absorbing board functional filler

- Decorative dry powder coating texture agent

Test data shows that the thermal conductivity of the thermal insulation mortar mixed with coarse silica soil particles can be reduced to below 0.08 W/(m·K), and the compressive strength remains above 8 MPa. Its porous structure also gives building products excellent moisture-regulating performance (24-hour moisture absorption and release capacity ≥ 80 g/m²).

2.3 Agricultural and horticultural applications

Coarse silica soil particles mainly play the following functions in agriculture:

- Soil amendment agent (addition rate 5-10%)

- Slow-release fertilizer carrier

- Component of hydroponic cultivation substrate

Field tests show that the ventilation porosity of the soil increased by 35%, the water retention capacity increased by 20%, and crop yield increased by 15-20%. Its unique pore structure provides an ideal habitat for microorganisms.

2.4 Environmental engineering applications

Typical uses in environmental treatment:

- Oil absorption material (oil absorption rate 200-300%)

- Industrial exhaust gas filter bed filler

- Rainwater infiltration system aggregate

A petrochemical enterprise used coarse silica soil particles to treat oily wastewater, with a COD removal rate of over 85%, and the treatment cost was 60% lower than that of the activated carbon system. Its coarse particle size characteristics are particularly suitable for high-flow rate treatment systems.

3. Technical advantage analysis

3.1 Physical performance advantages

Compared with traditional materials, coarse silica soil particles have:

- Higher permeability rate (10-50 m³/m²·h)

- Better compressive resistance (crushing rate < 5%)

- More stable chemical properties (pH 7-8)

- Longer service life (reusable 5-8 times)

3.2 Economic benefit analysis

The application of coarse silica soil particles can bring:

- 30-40% reduction in filtration system energy consumption

- 25-35% reduction in material consumption

- 2-3 times extension of equipment maintenance cycle

- 50% reduction in waste disposal costs

4. Typical application cases

4.1 Building Insulation Case

Application in exterior wall insulation system:

- Dry density: 350 kg/m³

- Thermal conductivity: 0.065 W/(m·K)

- Compressive strength: 0.8 MPa

- Meets A-level fire safety standard

4.2 Soil Improvement Case

Effect of orchard soil improvement:

- Soil bulk density reduced by 15%

- Effective water content increased by 25%

- Fruit sugar content increased by 1.5°Brix

- Fertilizer usage reduced by 20%

5. Application Precautions

5.1 Selection Guidance

Choose the appropriate specification based on the application scenario:

- High-flow filtration: 300 - 800 μm

- Building material addition: 200 - 500 μm

- Adsorption material: 500 - 1000 μm

- Agricultural application: 100 - 300 μm

5.2 Usage Restrictions

Silty soil coarse particles are not suitable for:

- Ultra-fine filtration (< 1 μm)

- Strong acid environment (pH < 2)

- Ultra-high flow rate systems (> 100 m³/m²·h)

- Precision instrument filling

6. Market Development Prospects

6.1 Application Trends

Emerging application directions include:

- Bioreactor fillers

- Phase change energy storage material carriers

- Industrial catalyst substrates

- 3D printed building materials

6.2 Technological Development Directions

Key breakthroughs in the future:

1) Surface selective modification technology

2) Precise control of pore structure process

3) Development of composite functionalization

4) Resource recycling and utilization schemes

7. Conclusion and Recommendations

Silicon loam coarse particles, with their unique physical structure and chemical stability, have demonstrated significant advantages in multiple industrial fields. Users are advised to:

1) Select the appropriate particle size product based on specific needs

2) Enhance the usage effect by combining with pre-treatment processes

3) Establish a scientific recycling and reuse plan

4) Stay informed about the development of new modified products

With the continuous maturation of application technologies, the market size of coarse silica soil particles is expected to grow at an annual rate of 6-8%, and their penetration rate in the fields of environmental protection and building materials will continue to increase. It is recommended that relevant enterprises strengthen application technology research and development and further expand their applications in high-value-added fields.
