Innovative Applications and Technological Development of Diatomite Particles in the Dryer Industry

1. Material Characteristics and Drying Mechanism

Diatomite particles, as a natural porous siliceous material, demonstrate outstanding performance advantages in the field of dryers. Their main chemical composition is amorphous SiO₂ (content 83-92%), with the following key characteristic parameters:

- Specific Surface Area: 15-60 m²/g (determined by BET method)

- Particle Size Distribution: 3-100 nm (mainly mesopores)

- Porosity: 60-85%

- Hygroscopic Capacity: 30-50% (RH = 80%, 25°C)

- Thermal Stability: Up to 1000°C

The drying mechanism of diatomite particles includes three main effects:

1) Physical Adsorption: By enriching the mesoporous structure for capillary condensation of water molecules

2) Chemical Adsorption: The surface silanol groups form hydrogen bonds with water molecules

3) Ion Exchange: The hydration of impurity cations

Isothermal hygroscopicity curve tests show that diatomite particles have the optimal hygroscopic linearity within the relative humidity range of 30-70%, making them particularly suitable as drying agent materials for temperature and humidity-sensitive environments.

2. Product Form and Application Forms

2.1 Single-component Dryer

Direct use of diatomite particles as the drying medium:

- Packaging form: breathable non-woven fabric/paper bag

- Particle size selection: 0.5-3 mm

- Bulk density: 0.4-0.6 g/cm³

- Typical applications: electronic component packaging, drug storage

Experimental data show that 10g of diatomite particles at 25°C/60% RH can absorb 3.2g of moisture in 48 hours, with a balance moisture content of approximately 32%.

2.2 Composite Dryer

Improving performance by combining with other materials:

- Silica composite: Enhancing the hygroscopicity in low-humidity environments

- Calcium chloride composite: Increasing the hygroscopic capacity

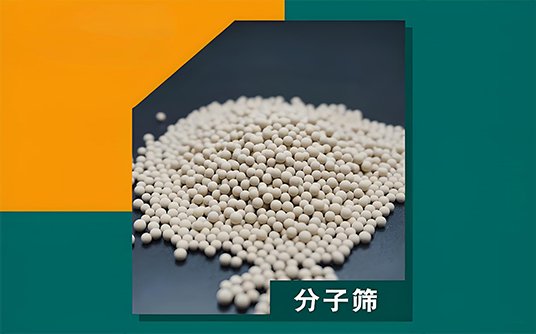

- Molecular sieve composite: Optimizing selective adsorption

A certain model of diatomite particle-silica composite dryer has a hygroscopic capacity of 40% higher than pure diatomite at RH 20% and still maintains 85% hygroscopic efficiency at RH 80%.

2.3 Functional Dryer

Giving special functions through modification:

- Antibacterial type: Loading silver ions

- Indicator type: Adding color-changing materials

- Slow-release type: Controlling humidity release

The antibacterial modified diatomite particle dryer has an antibacterial rate of >99% against Escherichia coli while maintaining over 90% of the original hygroscopic capacity.

3. Technical Advantage Analysis

3.1 Performance Advantage Comparison

Comparison with traditional drying agent materials:

| Performance Parameter | Diatomite Particles | Silica | Molecular Sieve | Montmorillonite |

| Hygroscopic Capacity (RH 50%) | 25-30% | 20-25% | 15-20% | 18-22% |

| Regeneration Temperature | 120-150°C | 150-180°C | 250-350°C | 200-250°C |

| Hygroscopic Rate | Medium | Fast | Slow | Medium |

| Cost Index | 1.0 | 1.2 | 2.5 | 0.8 |

3.2 Application Scene Advantages

Performance in specific environments:

- High-temperature environment: Maintaining structural stability (<800°C)

- Corrosive environment: Strong chemical inertness

- Precision environment: No dust pollution

- Food contact: Safe and non-toxic

4. Key Production Processes

4.1 Raw Material Processing

- Crushing and grading: Achieving the target particle size distribution

- Acid washing treatment: Removing metal impurities (Fe₂O₃ < 0.3%)

- Thermal treatment: Regulating the pore structure (500-800°C) - Channel modification: Optimizing pore size distribution

- Composite treatment: Enhancing comprehensive performance

4.3 Product molding process

- Granulation technology: Controlling particle strength

- Coating technology: Preventing powdering

- Blending technology: Precise component ratio

5. Typical application cases

5.1 Electronic product moisture-proof application

After using silica soil particles as a drying agent for the packaging of a certain brand camera:

- RH control within 35-45%

- Mold rot rate reduced to below 0.1%

- Cost reduced by 25% compared to the silica gel solution

- Certified RoHS

5.2 Drug storage application

Effect in vaccine cold chain transportation:

- Humidity fluctuation range ±5% RH

- Temperature adaptability -20℃ to 50℃

- Compliant with USP<671> standards

- No drug adsorption phenomenon

5.3 Industrial equipment protection

Drying solution for precision instrument boxes:

- Absorption capacity up to 35g/100g

- Reusable over 50 times

- VOCs release <0.1ppm

- Excellent shock resistance performance

6. Technological development trends

6.1 Performance improvement direction

- High capacity: Developing products with an absorption capacity >50%

- Intelligence: Humidity-responsive materials

- Multi-functionality: Integrating antibacterial and deodorizing functions

- Environmental friendliness: Biodegradable packaging materials

6.2 Process improvement direction

- Precise pore structure control technology

- Low-temperature regeneration process development

- Continuous production line optimization

- Online quality monitoring system

6.3 Application expansion direction

- Moisture-proof for new energy batteries

- Storage for aerospace equipment

- Micro-environment control for cultural relics protection

- Intelligent packaging integration system

7. Usage guidelines and precautions

7.1 Selection guide

Choose based on application scenarios:

- General environment: Ordinary silica soil particles

- Low-humidity environment: Composite products

- Food and medicine: High-purity grade products

- High-temperature environment: Calcined products

7.2 Usage suggestions

- Loading quantity: Calculated based on 1-2g/L space

- Replacement standard: Increase by more than 30%

- Regeneration conditions: 120℃×2h

- Waste disposal: Landfillable or recyclable

7.3 Prohibited situations

Not applicable to:

- Strong acid and alkali environment

- Direct contact with liquid water

- Ultra-low humidity (<10%RH) requirements

- Fluorine-containing compound environment

8. Market prospects and challenges

8.1 Market prospects

Global drying agent market size forecast:

- Will reach 2.5 billion US dollars in 2025

- Annual growth rate of 6.5%

- The proportion of silica soil particles will increase to 35%

Main growth areas:

- Pharmaceutical packaging

- New energy storage

- Precision machinery

- Food preservation

8.3 Industry Challenges

Main problems faced:

- Fluctuations in raw material quality

- Incomplete standard system

- Insufficient accumulation of application data

- Lack of professional talents

9. Conclusion and Outlook

Silicon dioxide particles, with their unique pore structure and environmentally friendly characteristics, have become an important functional material in the drying agent industry. The key development directions for the next five years include:

1) Development of high-performance products: Through nanomodification and composite technology, develop new product series with a moisture absorption capacity of >40%;

2) Intelligent upgrading: Integrate sensing and controlled-release technologies to achieve precise humidity regulation;

3) Green manufacturing: Optimize production processes and reduce energy consumption by more than 30%;

4) Standard system construction: Establish a complete product quality evaluation and application specification standard.

With technological progress and accumulation of application experience, the market penetration rate of silicon dioxide particle drying agents will continue to increase. It is expected that the share in high-end application fields will increase from the current 15% to over 30%. It is recommended that the industry strengthen cooperation among academia, industry, and research, focus on breaking through key material technologies and equipment bottlenecks, and promote the industry to transform towards high-quality development.
