Flux-Calcined Diatomaceous Earth

Flux-Calcined Diatomaceous Earth

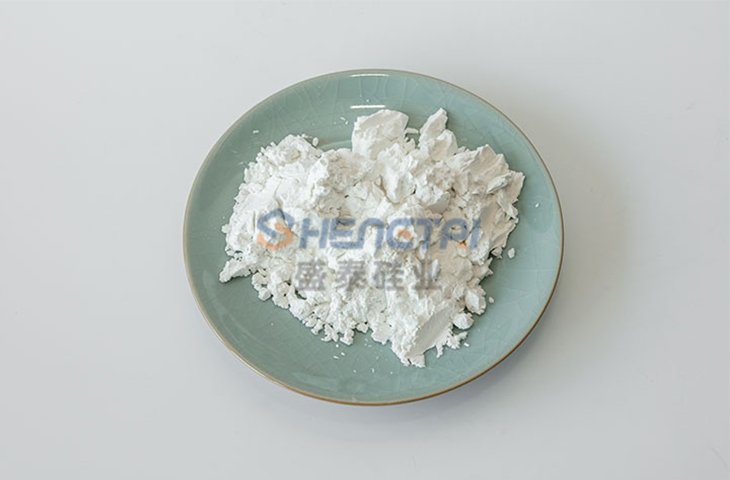

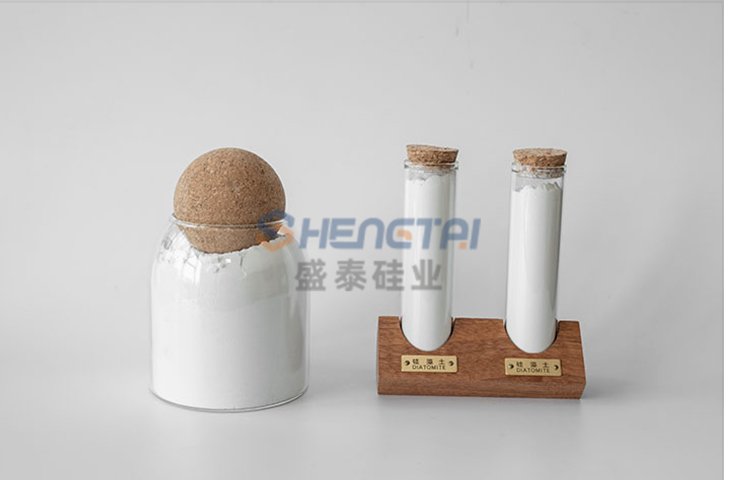

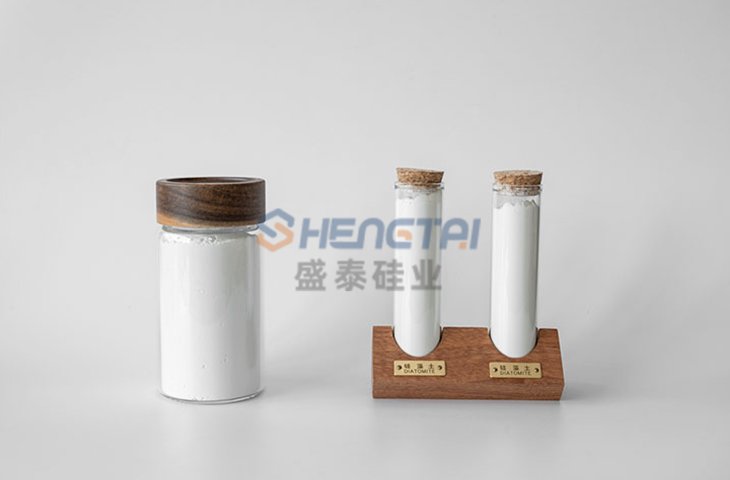

Flux-Calcined Diatomaceous earth is produced from carefully selected high-purity diatomaceous earth through high-temperature calcination, endowing it with exceptional thermal stability and a porous structure. With a SiO₂ content ≥85%, uniform pore size distribution, and a specific surface area of 40–60 m²/g, this product is ideal for applications in food, beverage, pharmaceutical, and chemical industries.The calcination process is environmentally friendly and non-toxic, complying with industrial safety production standards. Available in customizable particle sizes (20–1200 mesh), it adapts to diverse production requirements. Leveraging its high porosity and low density, flux-calcined diatomite helps customers achieve energy-efficient operations and enhanced product quality.

Inquiry Now

Production process introduction

Source factory, high quality and low price

Product technical indicators

Low density, high whiteness, Low vorticity, high purity

Grade	TD21	TD23	TD25	TD27	TS505	TS507	TS509	TS516	TS518	TS527	TS528	TS529	TS637	TS639
Colour	Pink	Pink	Pink	Pink	white	white	white	White	White	White	White	White	White	White
Permeability(Darcy)	0.05	0.13	0.22	0.31	1.4	1.9	2.5	3.6	4.5	5.5	7	8.5	10	16.5
Tap density (g/cm3)	0.45	0.45	0.45	0.45	0.46	0.46	0.46	0.47	0.47	0.47	0.47	0.47	0.48	0.48
Wet Densityc(g/cm3)	0.37	0.37	0.37	0.37	0.35	0.35	0.35	0.34	0.34	0.33	0.33	0.33	0.33	0.32
sieve analysis（%）	0.4	0.6	0.9	1.2	2.5	2.8	3	6.3	7.5	10.5	15.5	15.8	19	25
+150 Mesh	0.4	0.6	0.9	1.2	2.5	2.8	3	6.3	7.5	10.5	15.5	15.8	19	25
Median Particle Diameter(um)	15.2	17.8	20.6	22.8	25	28.8	30.5	32.5	37.2	40.8	45.8	50.2	60.7	72.6
PH	6.8	6.8	6.9	7	8.5	8.5	8.5	9	9	9.2	9.2	9.2	9.5	9.5
1、Tyler Screen;+150 mesh= > 105 microns 2、Note: Permeability (Darcy) is tested by CHINA method.
Product Grades	SiO2(%)		Al2O3(%)		FeO3(%)		CaO(%)		MgO(%)		Loss on lgnition (%)		Refractive Index
TD21 Thru TD27 Grades	90.5		3.15		1.35		0.48		0.38		0.25		1.43
TS505 Thru TS639 Grades	89.9		3.26		1.23		0.45		0.35		0.22		1.46
The properties reported represent typical values. The values are supplied as a technical service. For important health and safety information, please see the MSDS.											中国硅藻土制造商 CHINA DIATOMITE MAN UFACTURER
											中国硅藻土制造商 CHINA DIATOMITE MAN UFACTURER

Company introduction

10 years of focus on diatomaceous earth research and developme

Honor And Qualification

Official certification, professional after sales service.

Logistics and packageing

Full intimate service - to meet the practical needs of all cust

Everything you need to know

What are the Advantages of Flux-Calcined Diatomaceous earth?
1.Efficient Fluxing Performance: High-purity SiO₂ (≥85%) and a uniform microporous structure synergistically reduce material melting temperature (by ~10-15%), enhance melt fluidity, shorten processing cycles, and lower energy consumption. 2.Exceptional Thermal Stability: Calcined at 850–1200°C, it exhibits strong high-temperature resistance with minimal volumetric shrinkage (≤5%), preventing cracking or structural collapse. 3.High Adsorption & Low Impurities: Porosity >65% and a specific surface area of 40–60 m²/g enable efficient adsorption of molten impurities (e.g., metal oxides, ash), improving product purity by over 20%. 4.Energy-Efficient & Eco-Friendly: Replaces traditional fluxes (e.g., cellulose) to reduce fluoride pollution. The calcination process emits no harmful gases, complying with RoHS and REACH standards for sustainable production. 5.Versatile Adaptability: Customizable particle sizes (20–1200 mesh) suit diverse applications, including food, beverages, pharmaceuticals, chemicals, ceramic glazes, and refractory materials. 6.Cost Optimization: Low dosage (0.5–3% recommended) delivers significant effects, cuts raw material waste, reduces overall costs by 15–30%, and extends equipment lifespan. Flux-calcined diatomite combines advanced processing with industrial innovation, balancing performance enhancement and sustainable development goals.

How To Order?	Can You Supply Sample For Test ?
1: Plese tell us the detailed technical parameters you needed	Yes, the sample is free.
2: Then we choose the exact type diatomite filter aid .
3: Pls tell us the packing requirements,quantityand other request.	When Will Make A Delivery?
4：Then we answer these questions and give a best offer.	Delivery time - Stock order: 3 days after receipt of the full payment.- Other order: 15 days after of the deposit.

What are your core advantage?
1. Source factory, own mine, stable supply of core raw materials for 30 years.
2, The new self-developed low temperature washing storage process, lower product density, longer filtration cycle; The whiteness of the filler higher, the particle size of the product is more uniform, and the vortex value is less.
3. The only large enterprise in China that uses natural gas as a heat source for production, we always take environmental protection as our own responsibility and are committed to achieving sustainable development while protecting the environment.

What is your capacity?
The production capacity of our current diatomaceous earth filter aid is 60,000 tons/year, the production capacity diatomaceous earth filler is 2.5 tons/year, the production capacity of natural diatomaceous earth constant temperature drying product is 15,000 tons/year, the total production capacity of 90,000 tons/year.
