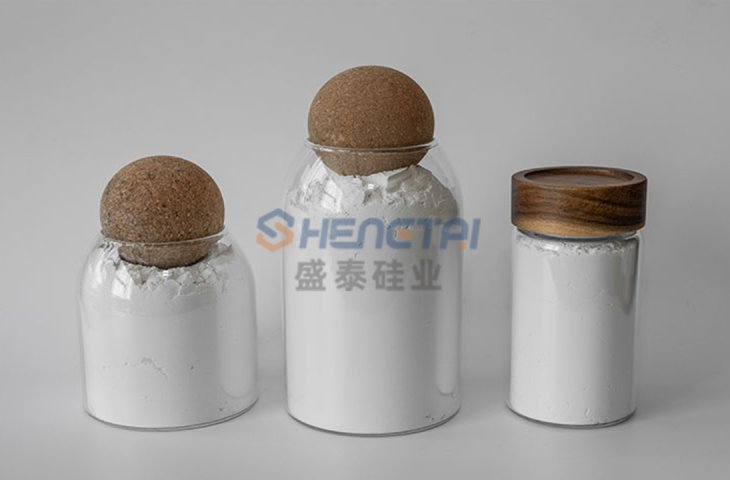

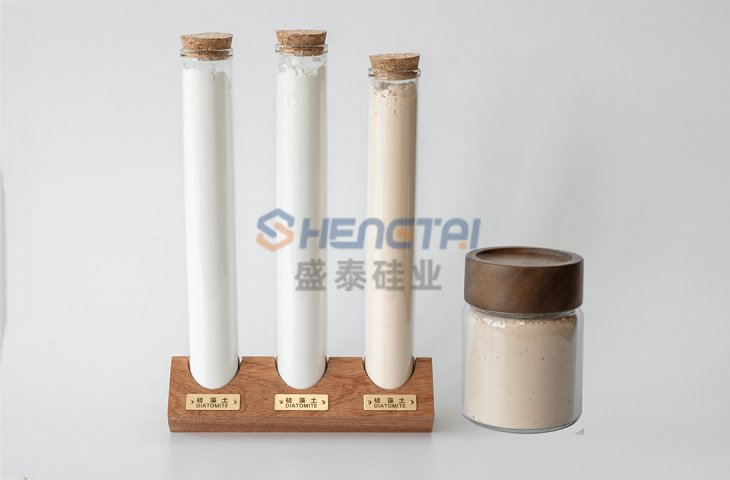

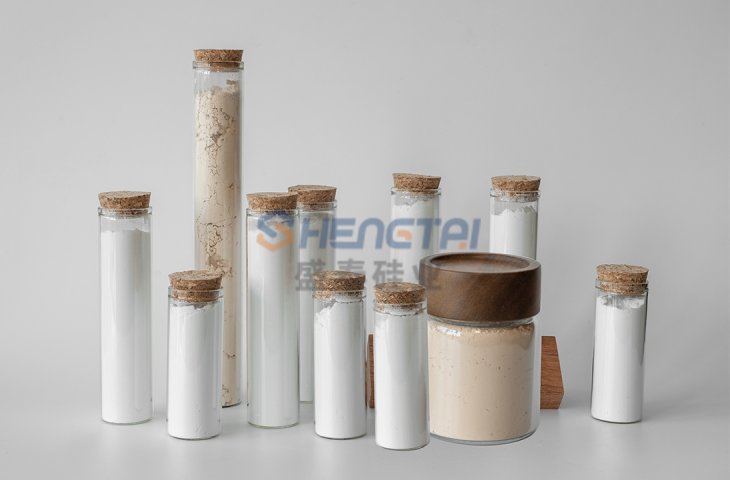

Diatomite Filter Aid For Drink

Diatomite Filter Aid For Drink

Our premium beverage-grade diatomite filter aid for drink is manufactured from carefully selected food-grade diatomite through high-temperature calcination, forming a three-dimensional microporous structure with exceptional purity (SiO₂ content ≥90%). Featuring precisely controlled pore sizes (0.1-10μm), high porosity (≥75%), and substantial surface area (30-50m²/g), this specialized filtration medium delivers outstanding clarification performance - effectively removing suspended solids, colloids and microorganisms with >98% turbidity reduction while maintaining ≥99.5% light transmittance and preserving natural flavors and nutritional components.The product demonstrates minimal leaching, complete absence of chemical residues, and excellent acid/alkali resistance (pH 2-12), making it suitable for diverse beverage production including juices, beers, and tea drinks. Its superior permeability increases filtration flow rate by 30%, while the easily removable filter cake reduces waste residue by 50%, significantly lowering energy consumption and operational costs.Available in customizable particle sizes (20-200 mesh) and compatible with various filtration systems (plate-and-frame, candle-type, etc.), this safe, efficient and environmentally friendly filter aid enables beverage manufacturers to achieve premium-quality transparent production with enhanced operational efficiency.

Inquiry Now

Production process introduction

Source factory, high quality and low price

Product technical indicators

Low density, high whiteness, Low vorticity, high purity

Grade	TD21	TD23	TD25	TD27	TS505	TS507	TS509	TS516	TS518	TS527	TS528	TS529	TS637	TS639
Colour	Pink	Pink	Pink	Pink	white	white	white	White	White	White	White	White	White	White
Permeability(Darcy)	0.05	0.13	0.22	0.31	1.4	1.9	2.5	3.6	4.5	5.5	7	8.5	10	16.5
Tap density (g/cm3)	0.45	0.45	0.45	0.45	0.46	0.46	0.46	0.47	0.47	0.47	0.47	0.47	0.48	0.48
Wet Densityc(g/cm3)	0.37	0.37	0.37	0.37	0.35	0.35	0.35	0.34	0.34	0.33	0.33	0.33	0.33	0.32
sieve analysis（%）	0.4	0.6	0.9	1.2	2.5	2.8	3	6.3	7.5	10.5	15.5	15.8	19	25
+150 Mesh	0.4	0.6	0.9	1.2	2.5	2.8	3	6.3	7.5	10.5	15.5	15.8	19	25
Median Particle Diameter(um)	15.2	17.8	20.6	22.8	25	28.8	30.5	32.5	37.2	40.8	45.8	50.2	60.7	72.6
PH	6.8	6.8	6.9	7	8.5	8.5	8.5	9	9	9.2	9.2	9.2	9.5	9.5
1、Tyler Screen;+150 mesh= > 105 microns 2、Note: Permeability (Darcy) is tested by CHINA method.
Product Grades	SiO2(%)		Al2O3(%)		FeO3(%)		CaO(%)		MgO(%)		Loss on lgnition (%)		Refractive Index
TD21 Thru TD27 Grades	90.5		3.15		1.35		0.48		0.38		0.25		1.43
TS505 Thru TS639 Grades	89.9		3.26		1.23		0.45		0.35		0.22		1.46
The properties reported represent typical values. The values are supplied as a technical service. For important health and safety information, please see the MSDS.											中国硅藻土制造商 CHINA DIATOMITE MAN UFACTURER
											中国硅藻土制造商 CHINA DIATOMITE MAN UFACTURER

Company introduction

10 years of focus on diatomaceous earth research and developme

Honor And Qualification

Official certification, professional after sales service.

Logistics and packageing

Full intimate service - to meet the practical needs of all cust

Everything you need to know

What Are The Advantages Of Diatomite Filter Aid For Drink？
1.Exceptional Clarification Performance Featuring multi-level pore sizes (0.1-10 μm) and high porosity (≥75%), it effectively captures suspended particles, yeast, and colloids, achieving a turbidity removal rate >98% and transmittance ≥99.5%, ensuring crystal-clear beverages with superior visual quality. 2.Zero Flavor Interference Through physical adsorption without chemical reactions, it preserves active components such as fruit juices, tea polyphenols, and amino acids, preventing aroma loss and maintaining natural taste and nutritional value. 3.Food-Grade Safety Certified with ISO triple-system standards, it contains no heavy metals or chemical residues, with leachables <50 ppm, guaranteeing beverage safety and regulatory compliance. 4.High Efficiency & Energy Savings The high-permeability design increases filtration speed by 30%, while the porous filter cake is easy to remove, reducing waste residue by 50% and cutting water/energy consumption and manual cleaning costs. 5.Broad Compatibility Acid/alkali resistant (pH 2-12), it suits diverse beverages including juices, beer, and plant-based protein drinks, and is compatible with mainstream equipment like plate-and-frame, candle, and rotary drum filters. 6.Eco-Friendly & Sustainable The calcination process is pollution-free, and spent filter media can be repurposed (e.g., for soil improvement). It reduces overall costs by 20% compared to traditional filter aids, supporting low-carbon production. Conclusion: With its precision filtration and safety advantages, diatomaceous earth filter aid empowers the beverage industry to achieve comprehensive upgrades in clarification efficiency, quality assurance, and sustainable production.

How To Order?	Can You Supply Sample For Test ?
1: Plese tell us the detailed technical parameters you needed	Yes, the sample is free.
2: Then we choose the exact type diatomite filter aid .
3: Pls tell us the packing requirements,quantityand other request.	When Will Make A Delivery?
4：Then we answer these questions and give a best offer.	Delivery time - Stock order: 3 days after receipt of the full payment.- Other order: 15 days after of the deposit.

What Are Your Core Advantage?
1. Source factory, own mine, stable supply of core raw materials for 30 years.
2, The new self-developed low temperature washing storage process, lower product density, longer filtration cycle; The whiteness of the filler higher, the particle size of the product is more uniform, and the vortex value is less.
3. The only large enterprise in China that uses natural gas as a heat source for production, we always take environmental protection as our own responsibility and are committed to achieving sustainable development while protecting the environment.

What Is Your Capacity?
The production capacity of our current diatomaceous earth filter aid is 60,000 tons/year, the production capacity diatomaceous earth filler is 2.5 tons/year, the production capacity of natural diatomaceous earth constant temperature drying product is 15,000 tons/year, the total production capacity of 90,000 tons/year.
